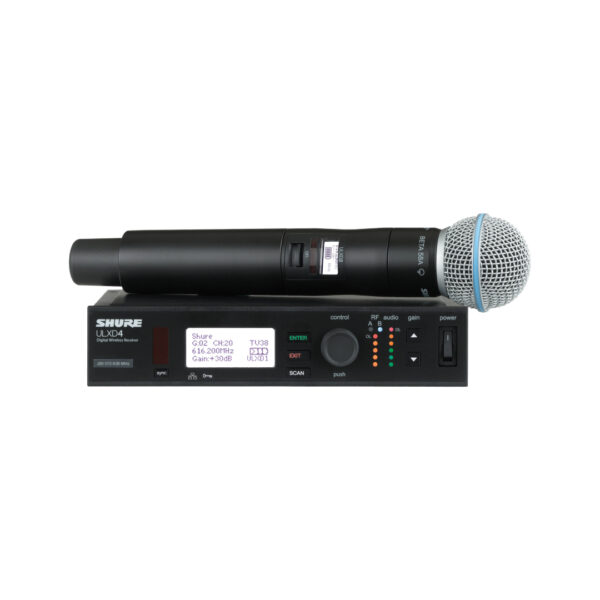

Shure ULXD24E/B58 bežični mikrofonski sistem

Description

Shure ULX je profesionalni bežični sistem mikrofona koji je dizajniran za visokokvalitetan audio prenos i pouzdanost u zahtevnim okruženjima, kao što su koncerti, konferencije i produkcije uživo.

ULX seriju karakteriše:

• Automatska frekvencijska selekcija – Sistem može automatski pronaći najbolju dostupnu frekvenciju za stabilan rad bez smetnji.
• Diverzitet prijemnika – Koristi tehnologiju true diversity, što znači da ima dva prijemnika i automatski bira onaj sa jačim signalom kako bi se sprečili prekidi.
• Visok kvalitet zvuka – Široki frekvencijski opseg i odličan dinamički raspon omogućavaju kristalno čist zvuk.
• Kompatibilnost sa različitim kapsulama – ULX serija može raditi sa raznim Shure mikrofonskim kapsulama, uključujući SM58, Beta 58A, Beta 87A itd.
• Izdržljivost i pouzdanost – Dizajnirani su za dugotrajnu upotrebu u zahtevnim uslovima.

Specifikacije:

• Wireless Transmission Digital UHF
• Number of RF Channels 2560
• Diversity Antenna Diversity
• RF Frequency Band G50: 470 to 534 MHz
• RF Bandwidth 64 MHz
• Frequency Step Size 25 kHz
• Max Systems per Setup 60
• Latency <2.9 ms
• Modulation Proprietary Receiver Form Factor Table-Top Mounting Options
• Rackmount, Tabletop (with Included Hardware) Rackmount Size 1 RU (1/2 Rack) Antenna 2 x 1/2 Wave External, BNC (Rear-Mount) Antenna Bias Voltage 12 to 13 VDC, 150 mA (per Antenna)
• Number of Audio Channels 1 Audio I/O, 1 x XLR 3-Pin, Male Balanced Output 1 x 1/4″ TRS Female Balanced Output
• Gain Range -18 to +42 dB (1 dB Steps), Pad 30 dB Audio Output Level
• XLR Output: +18 dBV (Line Level) XLR Output: -12 dBV (Mic Level) 1/4″ Output: +12 dBV (Consumer Level, Instrument Level) Phantom Power Protection On 1/4″, XLR Outputs Frequency Response 30 Hz to 20 kHz ±1 dB (Dependent on Mic) Network I/O 1 x RJ45 (10/100 Mb/s) Network Protocols DHCP, Manual IP Impedance XLR Output: 100 Ohms (Balanced) Approximate RF
• Sensitivity -98 dBm Adjacent Channel Isolation >70 dB
• Spurious Rejection: >80 dB
• Power Requirements AC/DC Power Adapter
• AC/DC Power Adapter 15 VDC at 600 mA (Included)
• AC Input Power 100 to 240 VAC, 50 / 60 Hz at 250 mA
• Display & Indicators 1 x Back-Lit LCD (Battery Status, Channel, Group, Menu Navigation)
• 2 x Multi-Segment LED (AF Level, Output Level, Peak)
• Housing Steel
• Operating Temperature 0 to 122°F / -17 to 50°C
• Storage Temperature -20 to 165°F / -28 to 73°C
• Shure ULXD2/B58 Digital Handheld Wireless Microphone Transmitter With Beta 58A Capsule (G50: 470 To 534 MHz)
• System Wireless Transmission Digital UHF
• RF Bandwidth 64 MHz
• Frequency Step Size 25 kHz
• Max Operating Range 328.1′ / 100 m
• Sample Rate/Resolution 48 kHz / 24-Bit
• Microphone Form Factor Handheld Capsule
• Sound Field Mono Transducer
• Dynamic Polar Pattern
• Supercardioid Frequency Range 50 Hz to 16 kHz
• Sensitivity -51 dBV/Pa at 1 kHz
